Blister Pack Paper
Blister Pack Paper

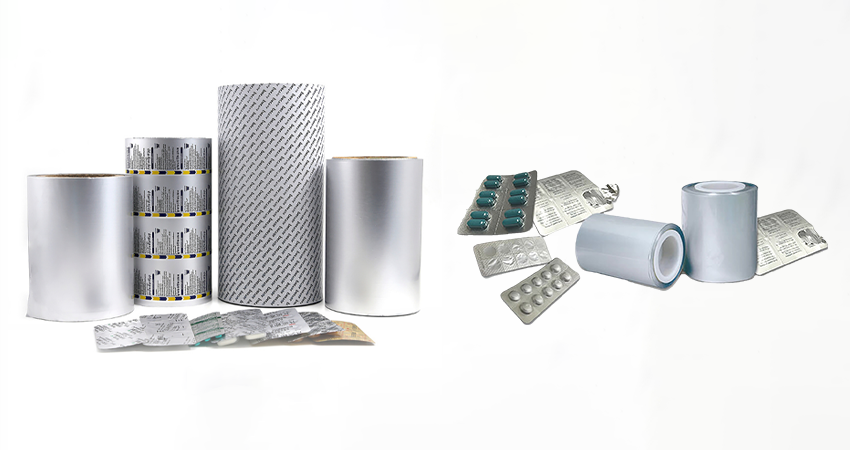

Radrack Alu Pack Foil LLP manufactures a range of hard Aluminium in a completely hygenic condition which can effectively protect from moisture, micro-organisms, light, oxygen and other gases making it a primary material in the protective packaging of tablets, Capsules and injectables.
Thanks to the annealing temperature and final conditioning processes during its manufacturing. It is non hazardous to health, contains no plasticizers and is environmentally friendly. Coupled with flexibility and formability, the ease with which aluminium foil can be coated, printed, laminated, slitted, and cold-formed and embossed qualifies it as an extremely versatile tool for the pack designer.
- Pharmaceutical Products
- Tabletes
- Capsules
- Strip packed
- Creams
- Ampoules
- Dressing
- High performance membrane for pharmaceutical closures
- Confectionery like schewing chiclets
| Aluminium Blister Strip Foils Specification | |
|---|---|
| NOMENCLATURE | Hard Tempered Aluminum foil coated with Heat Seal Lacquer on one side for sealing with PVC/PVDC and Clear lacquer coated on the other side for Printing |
| END APPLICATIONS | 1. Blister Packing of Pharmaceutical Products such as Tablets and Capsules 2. Confectionery packing like Chewing Chicklets |
| HEAT SEAL LACQUER OPTIONS | Poly Vinyl Chloride (PVC) and Universal Lacquer |
| PARAMETERS | Specification Values and Details |
| Foil Thickness , Grammage & Tolerances | 20 Microns- 54.20 GSM (Tolerance +/-8%) 25 Microns- 67.75 GSM (Tolerance +/-8%) 30 Microns- 81.30 GSM (Tolerance +/-8%) |
| HSL Coating | 4 to 6 GSM OR 6 to 8 GSM (as per the customer need) |
| Bond Strength with PVC or PVDC | <= 10 N (1000 grams/15 mm Strip)...(when sealed at 180 C, 0.5 second dwell time and 3-4 Bar sealing Pressure) |
| Pin Hole Count | 20 Microns: 70% of the reels with ZERO pin holes & the remaining may have maximum 10 only/ meter^2 area. 25 Microns & 30 Microns: Zero Pin Holes |
| Widths | Unprinted: can be supplied in any width from 45 mm to 925 mm (Wandering Tolerance+/-1.0 mm). Printed: can be supplied in any width from 45 mm to 610 mm (Wandering Tolerance+/-1.0 mm) |
| Printing Options | 1. Up to 8 Colours 2. Front and Back Registered 3. High Temperature Heat Resistance Printing. 4. UV Inks Printing. |
| Winding | Unprinted Foils: surface for printing shall be on top side and surface for sealing shall be on the reverse/bottom side. Printed Foils: printed surface on the Top Side and the Sealing surface shall be on the revers/bottom side. |
| IR SPECTRA Consistency | 100% |
| Safe for Food Contact | Shall be in accordance with BFR XXII, FDA-175-300 & EU Directive 2002 / 72 & 2005/79. |
| Core Options | PVC/PAPER/ALUMINIUM 76.2 mm +/- 0.5 mm |
| Reel Outer Diameter (OD) options | Printed Foil: 250 mm +/-10 mm. Unprinted Foils: 250/300/400/500 mm (+/-10 mm) |
| Identification Details | Each Reel is identified with Barcode & with complete details of Batch Number, Product Details, Date of Manufacturing etc. |
| Packing | Safe and sturdy packing is ensured to withstand Transportation Hurdles |
| Test Certificates | Product wise and invoice wise Certificate of Analysis with actual observed values accompanies each supply made to the customer. |
